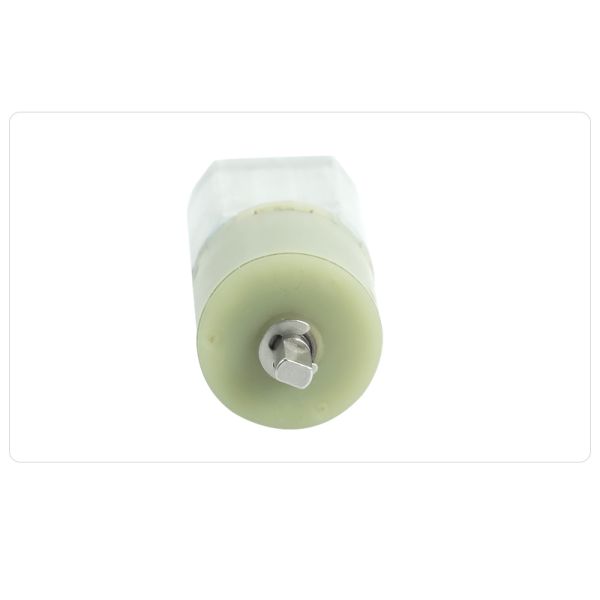

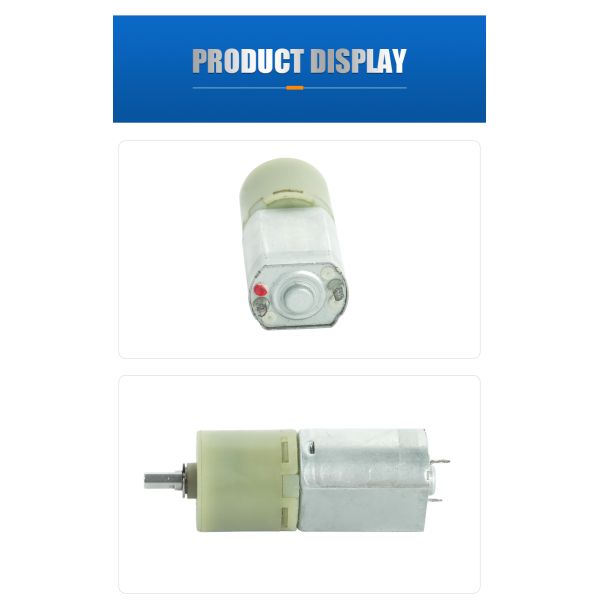

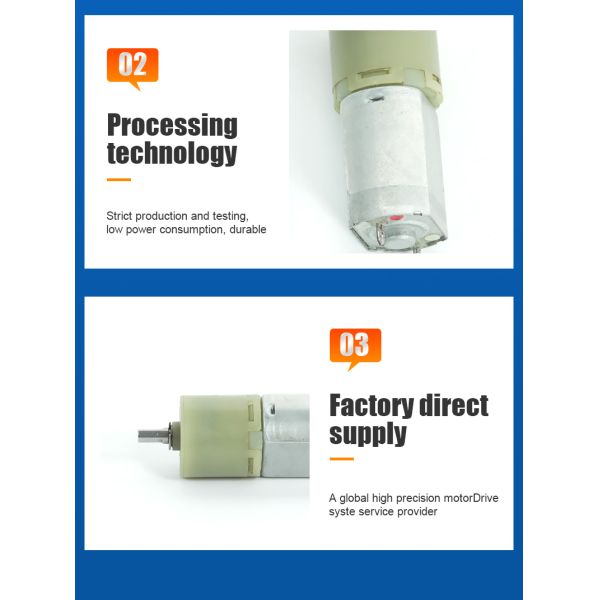

24v High Power Brush DC Planetary Gear Motor , Robots 12 Volt Planetary Gear Motor

Name: 24v High Power Brush DC Planetary Gear Motor Robots 12 Volt Planetary Gear Motor
Brand: FUTENG
Price: 1 USD

Wholesale 24v High Power Brush DC Planetary Gear Motor , Robots 12 Volt Planetary Gear Motor from china suppliers

Model Number : FT-20PGM130

Brand Name : FUTENG

Place of Origin : China

MOQ : 1000 Pieces

Price : Negotiable

Certification : CE/ROHS/FCC/REACH/ISO14001/ ISO9001/ISO45001/IATF16949

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 8000 0000

Delivery Time : 15-30 days/Negotiable

Packaging Details : Standard Export Carton & Customzied

Speed(RPM) : 1rpm-200rpm

Commutation : Brush

Construction : Permanent Magnet

Torque : 0.1-20kgf.cm, 9/11.4/5.7/10.9(g.cm)

Type : Gear Motor

Usage : Boat, Car, Electric Bicycle, Fan, Home Appliance, Cosmetic Instrument, Smart Home

Warranty : 3 months ~ 1 year

Geared motor model : FT-20PGM130

Voltage : 1-24V

Speed : 1rpm-2000rpm

Rotating speed : 8300/7200/5400/6100(rpm)

Rated voltage : 4.8/12/5/7.5V

Current : 75/30/30/33(mA)

Output : 0.61/0.66/0.25/0.55(w)

Contact Now

24v High Power Brush DC Planetary Gear Motor 12 Volt Planetary Gear Motor

FT MOTOR

Geared motor model: FT-20PGM130 Reducer diameter: Ø20mm Voltage: 1-24V Speed: 1rpm-2000rpm DC gear motors are widely used: Robots, electronic locks, public bicycle locks, relays, electric glue guns, household appliances, 3D printing pens, electric toothbrushes, office equipment, massage and health care, beauty and fitness equipment, medical equipment, toys, electric daily necessities, curling irons, automatic car facilities, etc.

Gearbox Data:
Gear stages	3
Reduction ratio (K)	118,157
Gear box length L(mm)	23.7
Rated torque (kg·cm)	4
Instant torque (kg·cm)	8
Gearbox efficiency (%)	73%

Motor Data
Motor Model		No Load			Load						Stall
	Motor Model	Rated Voltage	Speed	Current	Speed	Current	Output	Torque	Current	Torque
		V	(rpm)	(mA)	(rpm)	(mA)	(w)	(g·cm)	(mA)	(g·cm)
FT-130	4.8	8300	75	6500	280	0.61	9	1000	43
FT-130	12	7200	30	5600	110	0.66	11.4	420	54
FT-130	5	5400	30	4200	100	0.25	5.7	380	26
FT-130	7.5	6100	33	4900	140	0.55	10.9	570	56
